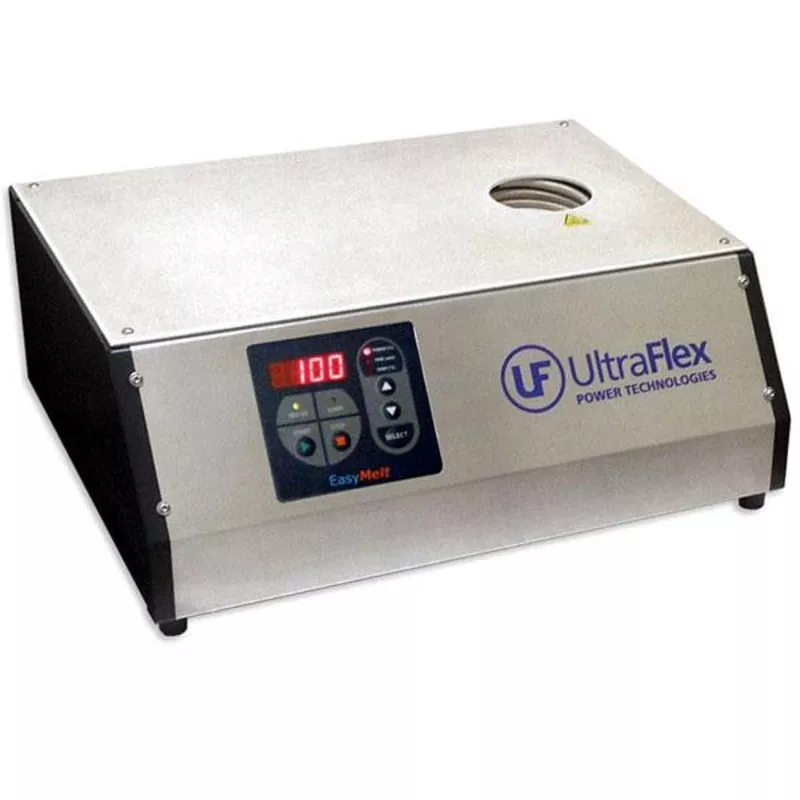

EasyMelt compact desktop unit, perfect for super quick melting of precious metals such as gold, copper, silver, and more. Quick melting is achieved through state-of-the-art engineer methods to power an induction coil with low levels of energy consumption (cost effective).
A versatile system, configurable to melt various alloys and metals with a built in control. Temperature control prevents overheating and burning of the metal.
A heavy duty stainless steel enclosure with high-temperature top plate ensures heavy-duty use.
Reliability you can count count on from installation, to maintenance, service and more.
- Adjustable Timer (1 30min) with audible sound
- Power regulation (10 100%)
- Build-in temperatureprobe
- LED Display – (power, time, temperature)
Includes:
- 1 x 2kg Gold Graphite Crucible with hole
- 1 x 2kg Gold Graphite Crucible without hole
- 1 x Crucible Tong
- 1 x External Thermocouple Option
- 1 x Graphite Cover for Thermocouple
Easymelt Quick Guide
Easymelt Data Sheet
| Power (MAX) | 2.80 kW |
| AC Line (50/60HZ) Single Phase | 230 V 10% |
| Melting Temperature (MAX) | 1300 C (2400F) |
| Crucible Capacity | 2kg Gold |
| Crucible Volume |
124 cm3 |
| Dimensions (LxWxH) |
40 cm x 45 cm x 18 cm (15.7 x 17.7 x 7.1) |
| Weight | 14kg (31lbs) |
