Festool Mobile Drilling Attachment MB 40-Set 577971
Get straight, accurate holes every timeno guesswork. The MB 40 helps you drill perfectly at 90 degrees, whether you’re on the jobsite or in the shop. Set your depth, line up your holes, and drill clean through wood, metal, or plastic. Need to drill straight down, into end grain, or make a row of holes? No problem. You can hook up dust collection right to the base, so you always see your mark. Its another FastFix add-on that works with your Festool cordless drill and gives you more ways to get the job done right.
Features & Benefits
- Dead-on accurate. Built tough and stable for clean, precise holes
- Dial it in. Set exact depth with easy-to-read scalezero position included. Goes up to 2 (50 mm), marked in both mm and inches.
- Built to adapt. Comes with side fence, end-stop, and guide rail adapter for edge work or long panelsrepeatable and exact every time.
- For 32 mm system. Hole series feature makes cabinet drilling simple.
- Fast setup. Tool chuck locks in by handno extra tools needed. Use CENTROTEC for quick bit swaps.
- Line it up. Base plate markings help you place it right the first time.
- Dust extractable. Hook up to a CT Dust Extractor with a D27 hose for a clean workspace.
- Stays put. Rubber base grips tightno slipping while you drill.

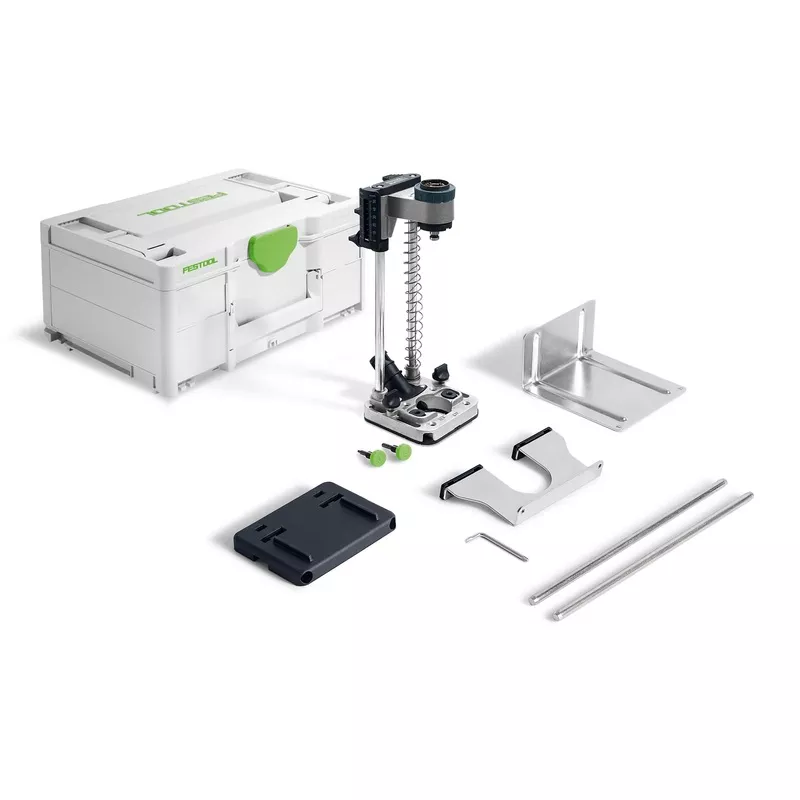

- All in one box. Packed in a Systainer to keep everything in order.
Specifications
- Holder: FastFix
- Max. drilling diameter for softwood (Forstner drill bit): 1-9/16″ (40 mm)
- Max. drilling diameter for softwood (auger bit): 5/8″ (16 mm)
- BASE: 4-3/8″x4-1/2″ (110 x 114 mm)
- Height: 12-1/4″ (312 mm)
- Setting range of depth stop: 0 – 2″ (0 – 50 mm)
- Max. screw diameter (templates/fixtures): 5/32″ (4 mm)
- Stroke with depth stop, incl. spring: 7-3/8″ (187 mm)
- Stroke without depth stop, without spring: 8″ (203 mm)
- Dust extraction connection dia.: 1-1/16″ (27 mm)
- Weight: 3.1 lbs (1.4 kg)
