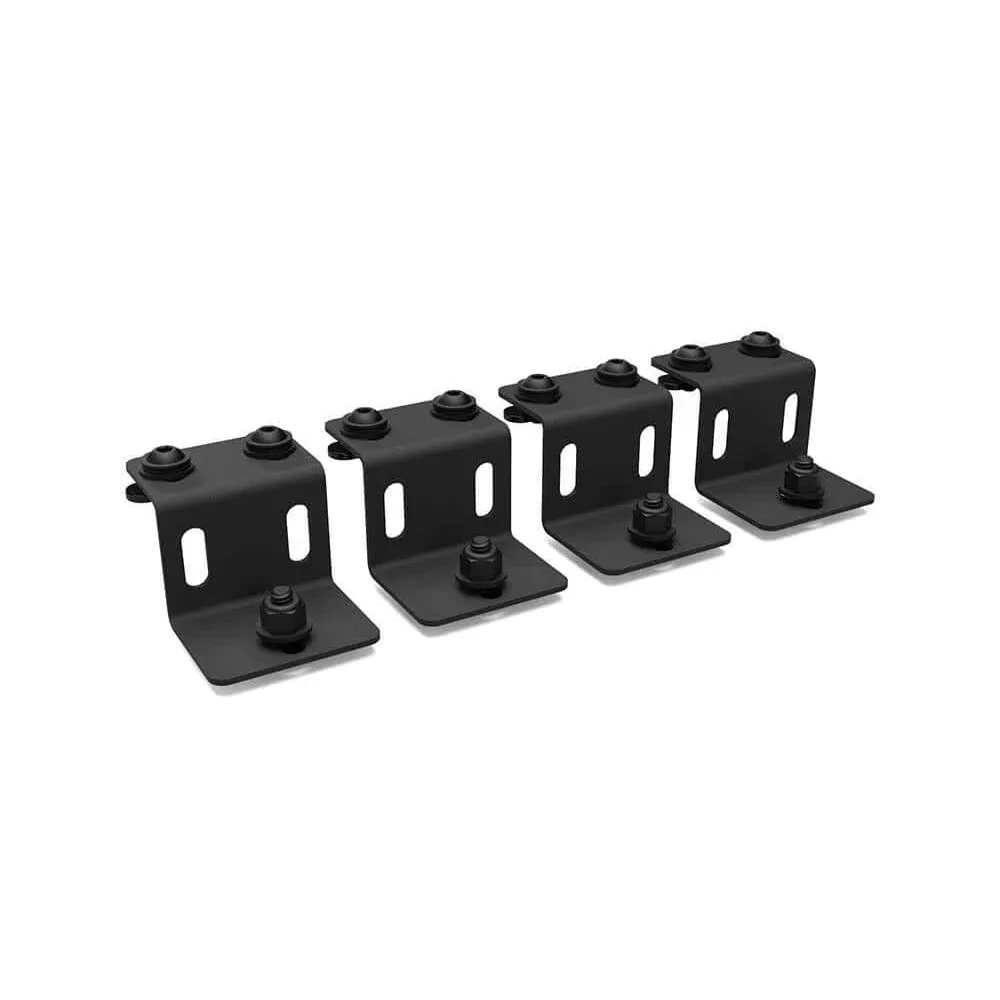

The Flatline Van Co. Solar Panel Mounting Brackets for Van Builds from Nomadic Supply Company® deliver a clean, professional solar installation solution engineered specifically for van rooftop builds. Whether you’re outfitting a Sprinter, Transit, or ProMaster, these brackets make securing solar panels to your roof rack straightforward and secure.
The Flatline Van Co. Solar Panel Mounting Brackets for Van Builds offer three distinct mounting orientations — flush, bottom, and raised — giving van builders the flexibility to configure their solar setup around their specific needs and roof rack usage. This versatility means you’re not locked into a single installation style, so you can optimize both panel positioning and usable rack space simultaneously.
Available in two heights to accommodate different panel thicknesses, the Flatline Van Co. Solar Panel Mounting Brackets for Van Builds are compatible with Flatline Van Co.’s Low Pro and Standard series roof racks as well as any roof rack featuring 8020-style extrusion crossbars. Every kit ships complete with stainless steel hardware, so you have everything needed to get your solar panels mounted cleanly and confidently right out of the box.
Flatline Van Co. Solar Panel Mounting Brackets for Van Builds Features:
- Flush-Mount Solar Installation: Designed to flush mount solar panels to FVC roof racks — installation is clean and simple.
- Broad Roof Rack Compatibility: Compatible with Low Pro or Standard series Sprinter, Transit, and ProMaster FVC roof racks, or any roof rack featuring 8020-style extrusion crossbars.
- Standard Height (1.5″): Designed for 1.5″ solar panels; may also be used with thicker panels, though thicker panels are limited to bottom-mount or raised-mount orientation.
- Low Profile Height (.67″): Designed for ZAMP Obsidian Series 0.67″ thin solar panels.
- Flush-Mount Orientation: The most common option, works for 1.5″ or .67″ panels. Install brackets in the T-slots on the top of the crossbars to have solar panels flush with the top of the crossbars.
- Bottom-Mount Orientation: Allows use of the crossbar for other purposes while still having solar panels installed. Install brackets in the T-slots on the bottom of the crossbars.
- Raised-Mount Orientation: Flip the bracket over and install in the T-slots on the top of the crossbars for solar panels to be mounted slightly higher than the crossbars.
- Four-Bracket Kit: Kit includes 4x solar panel mounting brackets.
- Stainless Steel Hardware Included: Includes stainless steel hardware: 8x bolts, washers, and slide-in t-nuts.
- Panel Mounting Hardware: Includes 4x bolts and locknuts to mount to the solar panel.
- Compatible with FVC Low Pro and Standard series Sprinter, Transit, and ProMaster roof racks.
- Compatible with any roof rack featuring 8020-style extrusion crossbars.
Flatline Van Co. Solar Panel Mounting Brackets for Van Builds Includes:
- 4x solar panel mounting brackets
- 8x stainless steel bolts, washers, and slide-in t-nuts
- 4x bolts and locknuts to mount to solar panel
Flatline Van Co. Solar Panel Mounting Brackets for Van Builds Specifications:
- Standard Height: 1.5″
- Low Profile Height: 0.67″
- Hardware Material: Stainless steel
- Quantity per Kit: 4 brackets
- Compatibility: FVC crossbars and 80/20-style extrusion crossbars
- Standard (1.5″) SKU:
- Low Profile (.67″) SKU:
- Standard (1.5″) UPC: 810202822245
- Low Profile (.67″) UPC: 810202820142
- Weight: 1 lb
