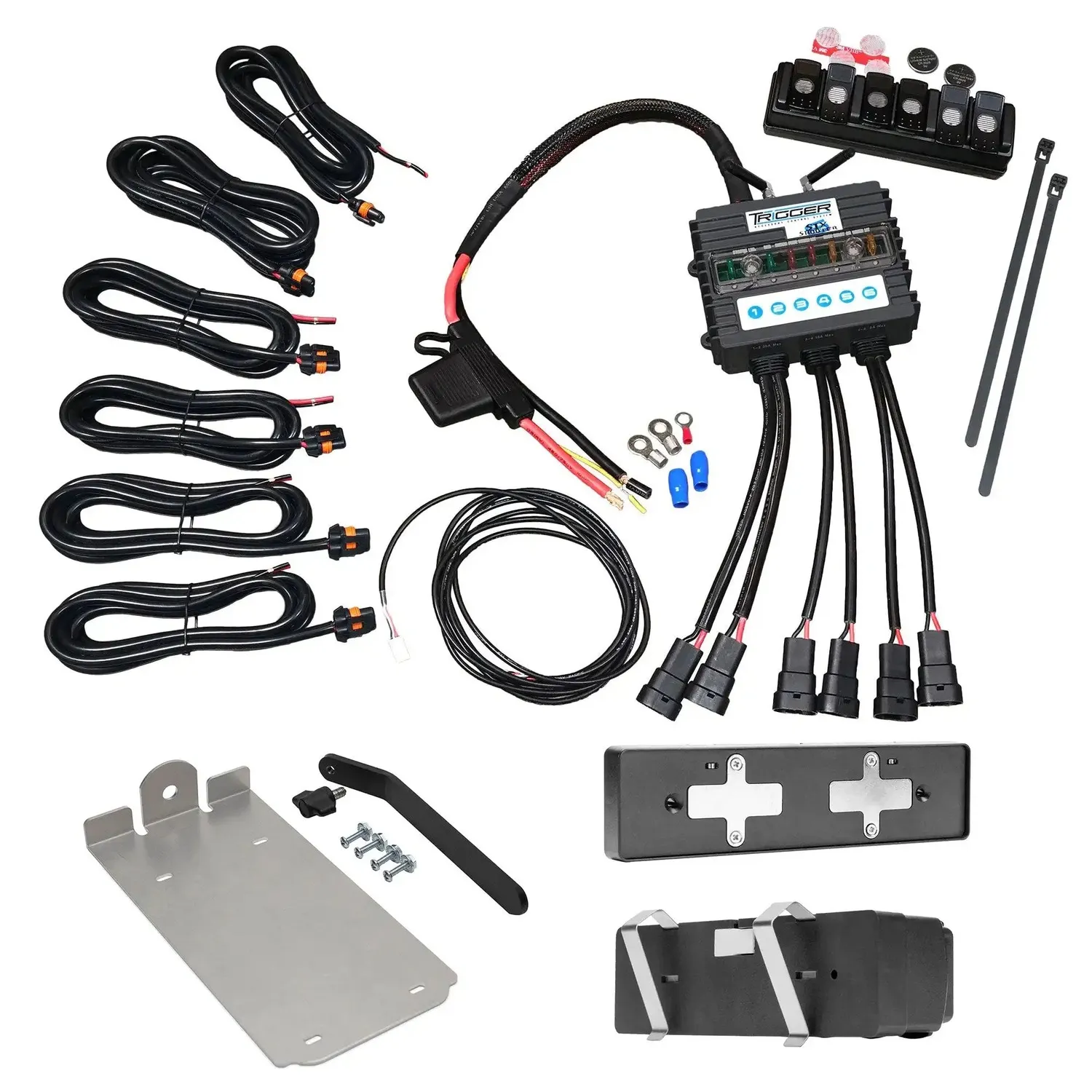

The ORACLE Lighting TRIGGER 6 SHOOTER 12-24V Controller Combo Kit from Nomadic Supply Company® delivers a fully integrated power management solution with six individually fused output circuits, wireless RF remote control, and built-in Bluetooth connectivity for effortless management of your vehicle’s accessories. Engineered for serious builds, the ORACLE Lighting TRIGGER 6 SHOOTER 12-24V Controller Combo Kit pairs a weatherproof enclosure with vehicle-specific mounting hardware so every installation looks and performs like a factory-grade upgrade.
Whether you’re running a light bar, air compressor, winch, or any combination of high-draw accessories, the ORACLE Lighting TRIGGER 6 SHOOTER 12-24V Controller Combo Kit gives you the circuit capacity and protection to handle it all with confidence. The six-circuit layout spans two 30A, two 10A, and two 5A fused outputs, ensuring each accessory receives exactly the right amount of power while the 100A system fuse guards the entire electrical system from upstream faults.
Free app-based control through the TRIGGER ACS PLUS platform puts on/off switching, dimming, and flashing functions directly on your smartphone, while the built-in Bluetooth battery monitor keeps real-time voltage data visible at a glance. The backlit wireless RF remote extends that convenience beyond the cab, letting you manage circuits whether you’re seated inside or working around the vehicle in the dark.
ORACLE Lighting TRIGGER 6 SHOOTER 12-24V Controller Combo Kit Features:
- 6 Fused Output Circuits: Two 30A, two 10A, and two 5A fused circuits are included, each protected by an o-ring sealed cover to keep moisture and debris away from connections.
- 100A System Fuse: A 100A fuse on the positive input wire provides whole-system protection, guarding the ORACLE Lighting TRIGGER 6 SHOOTER 12-24V Controller Combo Kit and your vehicle’s electrical system from catastrophic overcurrent events.
- Six 8-Foot Wire Harnesses: Six 8-foot wire harnesses with pre-installed waterproof connectors are included, simplifying the connection of accessories and reducing the need for additional wiring hardware.
- Wireless Backlit RF Remote: The wireless backlit RF remote features custom backlight color options and is usable both inside and outside the vehicle, giving you convenient circuit management wherever you are.
- Built-In Bluetooth Battery Monitor: A built-in Bluetooth battery monitor delivers real-time battery voltage data directly through the TRIGGER ACS PLUS app, keeping you informed of your vehicle’s electrical health.
- Bluetooth App Control: The free TRIGGER ACS PLUS app for iOS and Android provides on/off switching, dimming, and flashing control for each circuit directly from your smartphone.
- Manual Buttons: Individual manual buttons on top of the control box allow you to power each circuit on or off without requiring the app or remote, providing a reliable backup control method.
- Built-In DIN Connector: A built-in DIN connector supports the use of conventional toggle switches for those who prefer a traditional switch panel setup; the toggle switch harness is sold separately.
- Low Voltage Cut-Off: The low voltage cut-off feature automatically shuts the system down if battery voltage drops too low, protecting both the battery and connected accessories from damage.
- High-Intensity LED Circuit Indicators: High-intensity LED indicators on each circuit illuminate blue when the circuit is active and red when a fuse has blown, making diagnostics fast and intuitive.
- Waterproof Case Design: The waterproof enclosure is rated for operation from below freezing up to 250°F, making the ORACLE Lighting TRIGGER 6 SHOOTER 12-24V Controller Combo Kit suitable for extreme underhood and outdoor environments.
- Vehicle-Specific Underhood Controller Bracket: A vehicle-specific underhood controller bracket is included with each kit variant, ensuring a clean, secure mounting location without requiring custom fabrication.
- Vehicle-Specific Remote Mount: A vehicle-specific remote mount is included with each kit variant, with options including overhead, visor, pedestal, or flat mount styles depending on the selected variant.
- 12-24V Input: The 12-24V input range accommodates both standard 12-volt and 24-volt vehicle electrical systems through a straightforward three-wire connection using ground, switched positive, and battery positive leads.
- Switch Labels Included: Switch labels are included to help identify each circuit at a glance, keeping your installation organized and easy to navigate.
- Vehicle-specific mounting hardware (underhood bracket and remote mount) included per kit variant
- Remote mount style (overhead, visor, pedestal, or flat) varies by vehicle variant
ORACLE Lighting TRIGGER 6 SHOOTER 12-24V Controller Combo Kit Compatibility:
- Ford Bronco
- Jeep Wrangler JL
- Jeep Gladiator JT
- Jeep Wrangler JK
- Toyota 4Runner
- Lexus GX 470
- Toyota FJ Cruiser
- Toyota Tacoma
ORACLE Lighting TRIGGER 6 SHOOTER 12-24V Controller Combo Kit Specifications:
- Output Circuits: 6 fused (2x 30A, 2x 10A, 2x 5A)
- System Fuse: 100A on positive input wire
- Wire Harnesses: Six 8-foot harnesses with pre-installed waterproof connectors
- Input Voltage: 12-24V
- Input Connection: 3-wire (ground, switched positive, battery positive)
- Operating Temperature: Below freezing to 250°F
- Connectivity: Bluetooth (TRIGGER ACS PLUS App) + Wireless RF Remote
- App Compatibility: iOS and Android
- Battery Monitor: Built-in Bluetooth battery monitor
- DIN Connector: Built-in (toggle switch harness sold separately)
- Warranty: 3-Year
- Shipping Weight: 9 lbs
