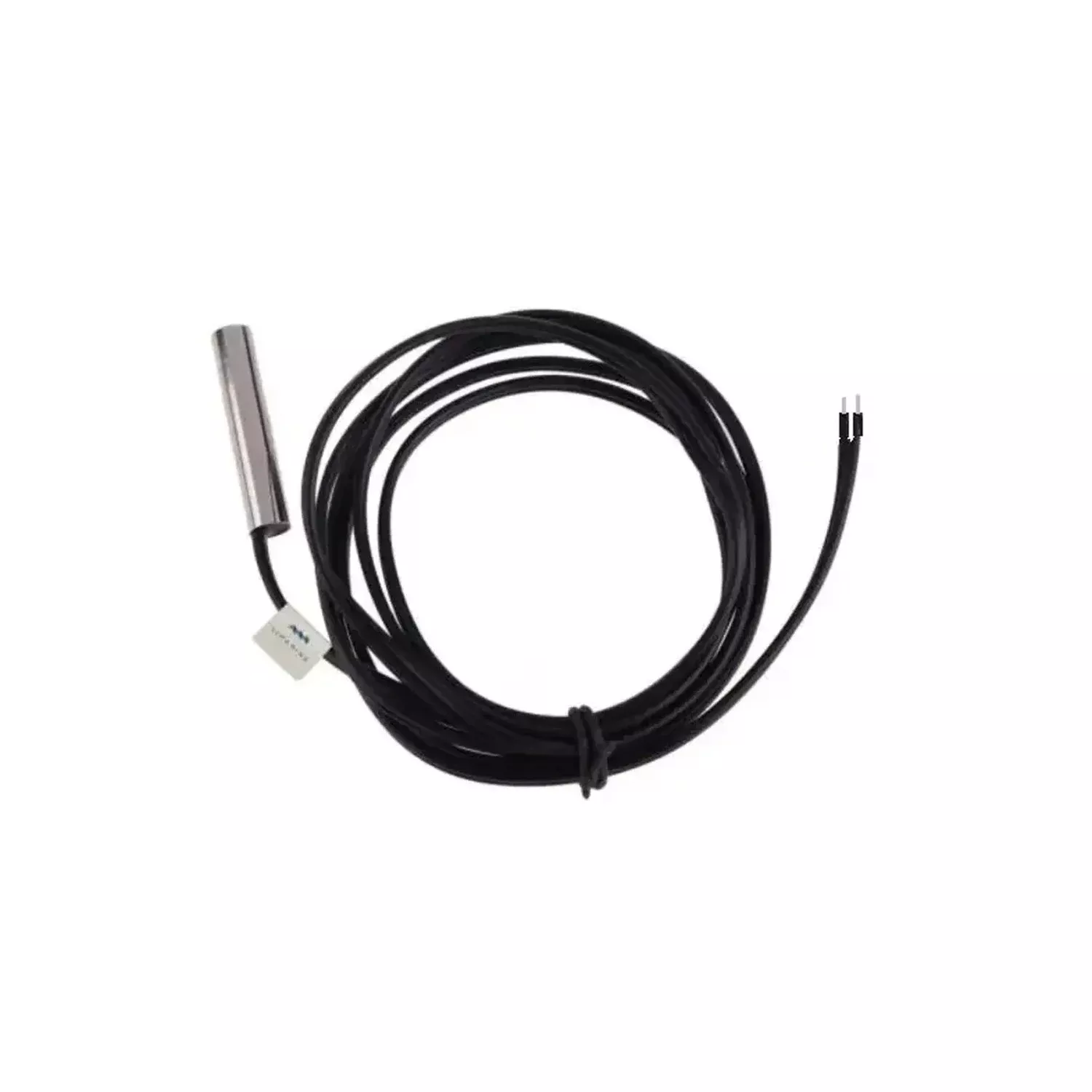

The Simarine Temperature Sensor NTC 10k 1m (TS01) from Nomadic Supply Company® delivers precise, reliable temperature monitoring across a wide measurement range, making it an ideal choice for marine and off-grid applications. Built with a stainless steel sheath and waterproof construction, the Simarine Temperature Sensor NTC 10k 1m (TS01) is engineered to perform in demanding environments where accuracy and durability are non-negotiable.
The Simarine Temperature Sensor NTC 10k 1m (TS01) features an NTC 10k±1% 3950 thermistor type with a B-constant of 3380K ±1%, ensuring consistent and accurate readings across its full operating range of -13 to 105 °C. Whether monitoring battery banks, engine compartments, refrigeration systems, or fluid temperatures, the Simarine Temperature Sensor NTC 10k 1m (TS01) provides the dependable data you need to keep your systems running safely and efficiently.
With a compact 5 x 25 mm probe size and a generous five-meter wire length, the Simarine Temperature Sensor NTC 10k 1m (TS01) offers flexible installation options in tight or hard-to-reach spaces. Its probe insulation rating of greater than 100 MOhm and its ability to sustain peak voltages of AC1800V at 1mA for two seconds speak to the robust electrical integrity built into every unit.
Simarine Temperature Sensor NTC 10k 1m (TS01) Features:
- Stainless Steel Sheath and Waterproof: The probe is encased in a stainless steel sheath and fully waterproofed, making it suitable for wet and harsh environments.
- Measurement Range: Capable of accurately measuring temperatures from -13 to 105 °C, covering a broad spectrum of thermal monitoring needs.
- Length of Wire: 5 meter
- Size of Probe: 5 x 25 mm
- Output: 2 wires
- Type: NTC 10k±1% 3950
- B-constant: 3380K -/+ 1%
- Typical Dissipation Constant: 5mW/°C
- Probe Insulation:>100MOhm
- Peak Voltage Sustain Time: 2 seconds, AC1800V 1mA 2 seconds
- Stress Sustain: 9.8N (1kgF) for 1 minute no deformation
Simarine Temperature Sensor NTC 10k 1m (TS01) Includes:
- 1 x NTC 10K 1% Temperature Temp Sensor Probe Thermometer Waterproof cable
Simarine Temperature Sensor NTC 10k 1m (TS01) Specifications:
- Type: NTC 10k±1% 3950
- B-constant: 3380K ±1%
- Measurement Range: -13 to 105 °C
- Probe Size: 5 x 25 mm
- Output: 2 wires
- Typical Dissipation Constant: 5mW/°C
- Probe Insulation:>100MOhm
- Peak Voltage Sustain Time: AC1800V 1mA for 2 seconds
- Stress Sustain: 9.8N (1kgF) for 1 minute no deformation
- Sheath Material: Stainless steel, waterproof
