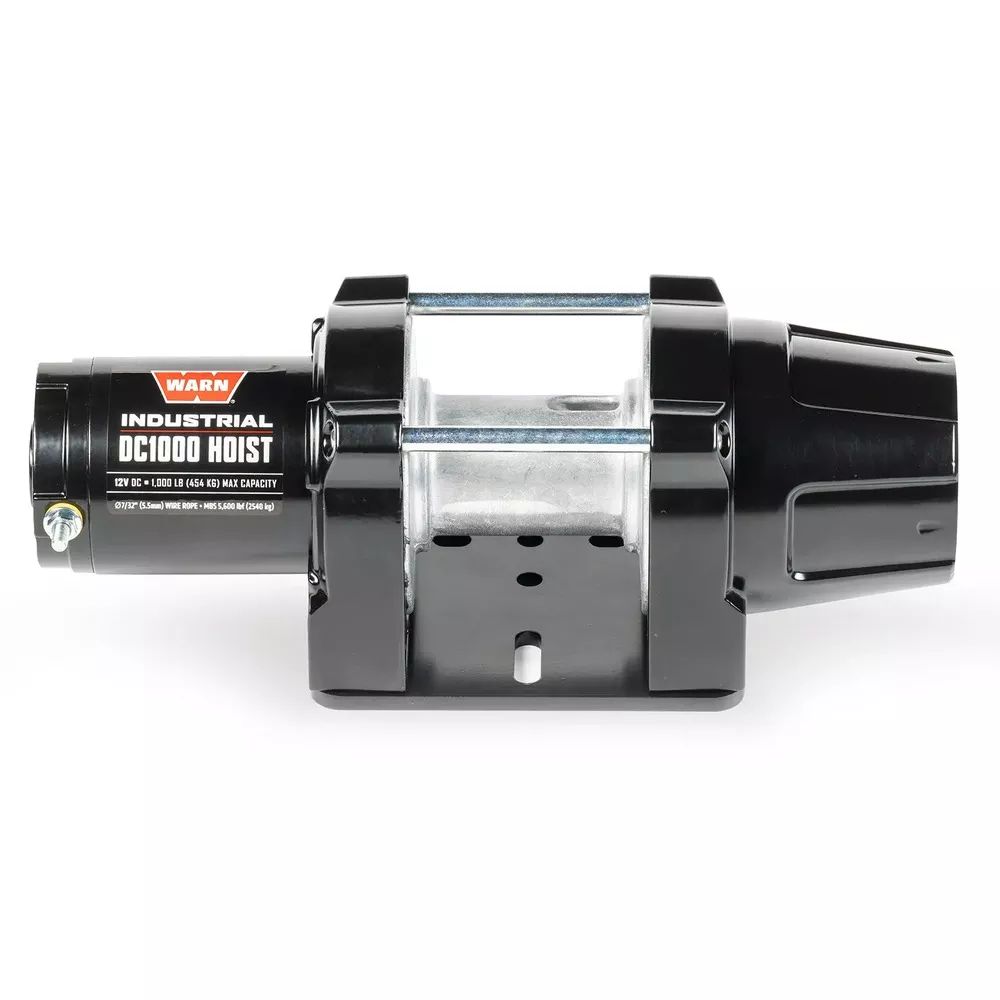

The Warn DC1000 12V Hoist – Short Drum (105151) from Nomadic Supply Company® delivers a reliable 1,000 lb. lifting capacity in a compact short-drum configuration built for demanding real-world applications. Engineered with WARN’s hallmark precision and durability, the Warn DC1000 12V Hoist – Short Drum (105151) is the go-to choice for work truck operators, overland adventurers, and military vehicle outfitters alike.
The Warn DC1000 12V Hoist – Short Drum (105151) features an IP68/IP69K waterproof rating, meaning it stands up to full submersion and high-pressure wash-downs without skipping a beat. Whether you’re hoisting a spare tire on a heavily loaded overland rig or operating crane and davit systems on a work truck, the Warn DC1000 12V Hoist – Short Drum (105151) performs where lesser hoists fall short.
Backed by WARN’s commitment to meeting the most stringent industry standards, the Warn DC1000 12V Hoist – Short Drum (105151) pairs a three-stage planetary gear train with hardened steel gears and an automatic mechanical brake for a system that holds its full-rated load securely even when power is cut. The fixed-mount design with an included mounting plate and hardware makes installation straightforward, getting you operational faster with minimal hassle.
Warn DC1000 12V Hoist – Short Drum (105151) Features:
- 1,000 lb. (454 kg) Capacity: Delivers a full 1,000 lb. rated line pull in a short-drum configuration, making it well-suited for compact installations without sacrificing lifting performance.
- 12V DC Permanent Magnet Motor: Powers the hoist using a 12V DC permanent magnet motor, providing consistent and efficient electrical operation across a wide range of vehicle platforms.
- IP68/IP69K Waterproofing Sealing: Fully sealed to IP68 and IP69K standards, protecting internal components against prolonged submersion and high-pressure, high-temperature water jets.
- Mounting Bolt Pattern 3.0 in. x 4.87 in. (76.2mm x 123.7mm): Features a standardized fixed-mount bolt pattern of 3.0 in. x 4.87 in. (76.2mm x 123.7mm) for straightforward and secure installation.
- Automatic Mechanical Brake: Engages automatically to hold the full-rated load without requiring continuous power, ensuring safe and secure load retention in all conditions.
- Three-Stage Planetary Gear Train: Utilizes a three-stage planetary gear train constructed with hardened steel gears for exceptional strength, smooth operation, and long service life under heavy use.
- Includes Mounting Plate and Hardware: Comes complete with a mounting plate and all necessary hardware, simplifying the installation process right out of the box.
- Versatile Application Compatibility: Suitable for work truck cranes and davits, overland rig spare tire lifting, and military vehicles, covering a broad range of professional and off-road use cases.
- Stringent Standards Compliance: All WARN hoists comply with the most stringent standards, reflecting the brand’s dedication to quality, safety, and performance across every product in their lineup.
Warn DC1000 12V Hoist – Short Drum (105151) Specifications:
- Cable Material: Not Included
- Motor Voltage: 12V DC
- Mount Type: Fixed Mount
- Operation Type: Electrical
- Rated Line Pull: 1,000 lb.
- Mounting Bolt Pattern: 3.0 in. x 4.87 in. (76.2mm x 123.7mm)
- Waterproof Rating: IP68/IP69K
